MDT .223 Rem Metal AICS Magazine (10 Round)

MDT .223 Rem Metal AICS Magazine (10 Round) is a 10-round AICS-pattern magazine for 223 Remington / 5.56 NATO. MDT makes it from high-strength steel, nitrides it and then finishes it inside and out with Cerakote Elite, giving it excellent corrosion resistance and a slick internal surface so the follower runs smoothly.

MDT’s Double Stack Single Feed (DSSF) design staggers the rounds side by side and brings them into a single column at the feed lips, so the magazine is about ¾” (19 mm) shorter than a standard AICS magazine of the same capacity, which makes magazine changes easier when you are shooting prone. Two internal ribs cut friction between the cartridges and the magazine body and smooth the change from double stack to single feed.

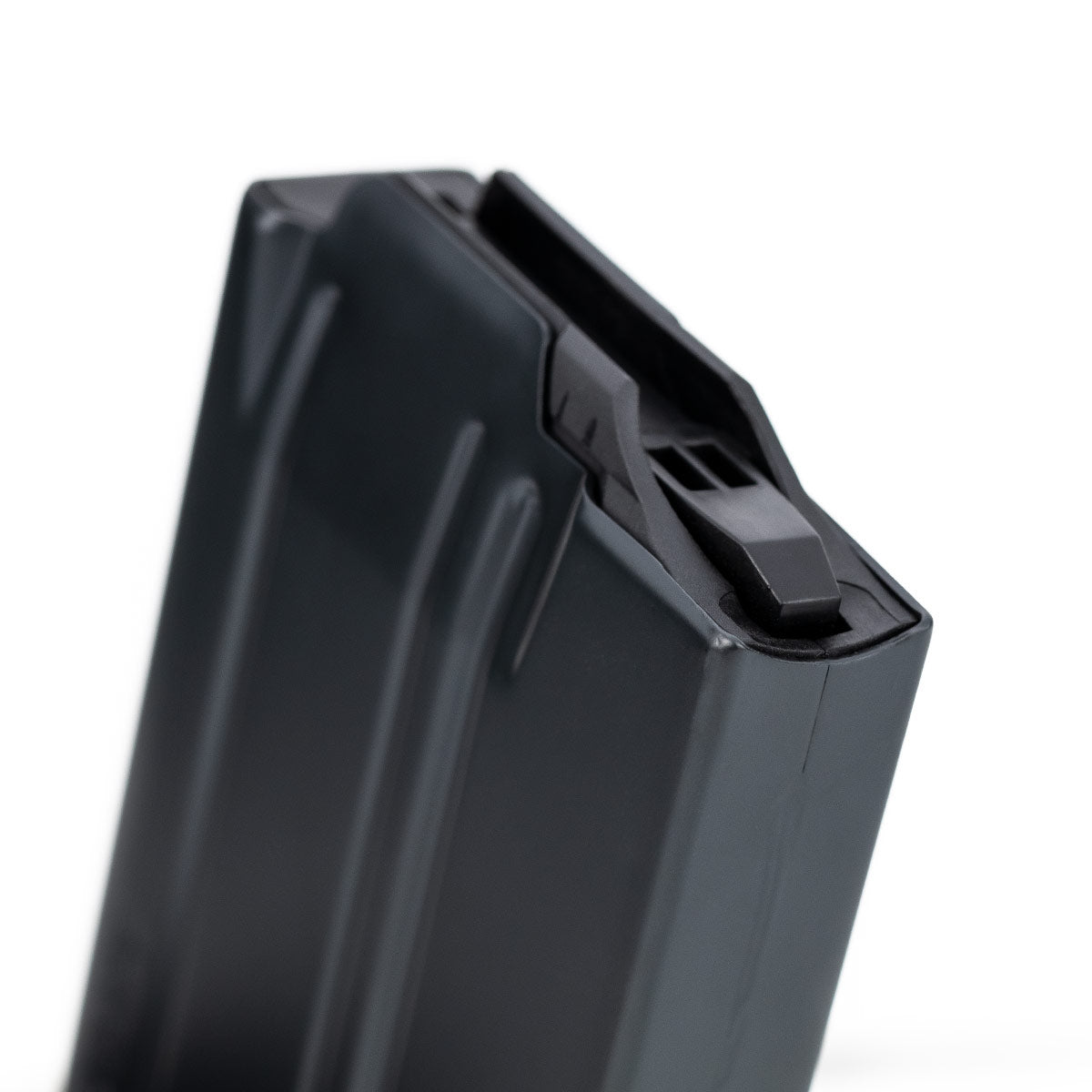

Polymer feed-lip inserts extend about 0.5″ past the steel feed lips, holding each cartridge for longer so the bullet tip is already in the chamber before the rear of the case is released.

KEY FEATURES:

• 10-round capacity
• High-strength nitrided steel with Cerakote Elite finish inside and out
• Fits short-action AICS-pattern bottom metals and chassis, including all MDT chassis and stocks
• Double Stack Single Feed (DSSF) design, about ¾” shorter than a standard AICS magazine
• Feed lips can be tuned for reliable feeding
• Removable floor plate for cleaning
• Maximum cartridge overall length (COAL) 2.500″
• Polymer feed-lip inserts for controlled feeding

COMPATIBILITY

Cartridges: 223 Remington / 5.56 NATO

Magazine well: Short-action AICS pattern. Fits AICS-pattern short-action chassis and bottom metals, including all MDT short-action chassis and stocks.

Max cartridge overall length (COAL): 2.500″

MDT bottom metal: MDT CORE, Hunting and Precision Bottom Metal (short-action versions). Not the CORE Bottom Metal for Howa 1500 / Weatherby Vanguard, which takes polymer magazines only.

Factory rifles and aftermarket stocks vary, so check your rifle’s magazine specification before ordering, or WhatsApp us on 063 907 7906 and we’ll help you match the right magazine.

Not sure which MDT magazine you need? Read our guide: Choosing the Right MDT Magazine for Your Cartridge.

WHAT’S IN THE BOX

• 1 x MDT .223 Rem Metal AICS Magazine (10 Round)

WORKS WITH

• MDT CORE Bottom Metal – converts your stock to take AICS magazines (not the Howa / Vanguard version, which takes polymer magazines only)
• MDT Hunting Bottom Metal – slim, lockable AICS bottom metal for hunting rifles
• MDT Precision Bottom Metal – AICS magazines in Remington 700 SA stocks with a Badger M5 inlet
• MDT .223 Rem Polymer AICS Magazine (10 Round) – the 10-round polymer version for the same cartridges
• MDT .223 Rem Polymer AICS Magazine (12 Round) – the 12-round polymer version for the same cartridges
