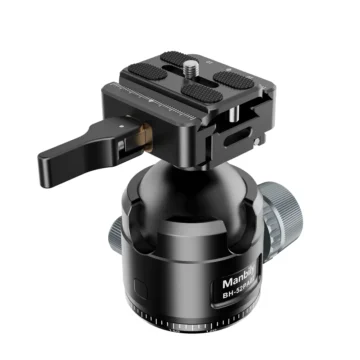

Manbily Tripod Ball Head BH-52PA02

The Manbily BH-52PA02 is a heavy-duty, low-profile ball head designed specifically for hunting and precision shooting, featuring a dual-mounting system that supports both Arca-Swiss plates and Picatinny rails. It is characterized by its large 52mm ball, high load capacity, and robust construction, suitable for mounting rifles, spotting scopes, and cameras.

FEATURES:

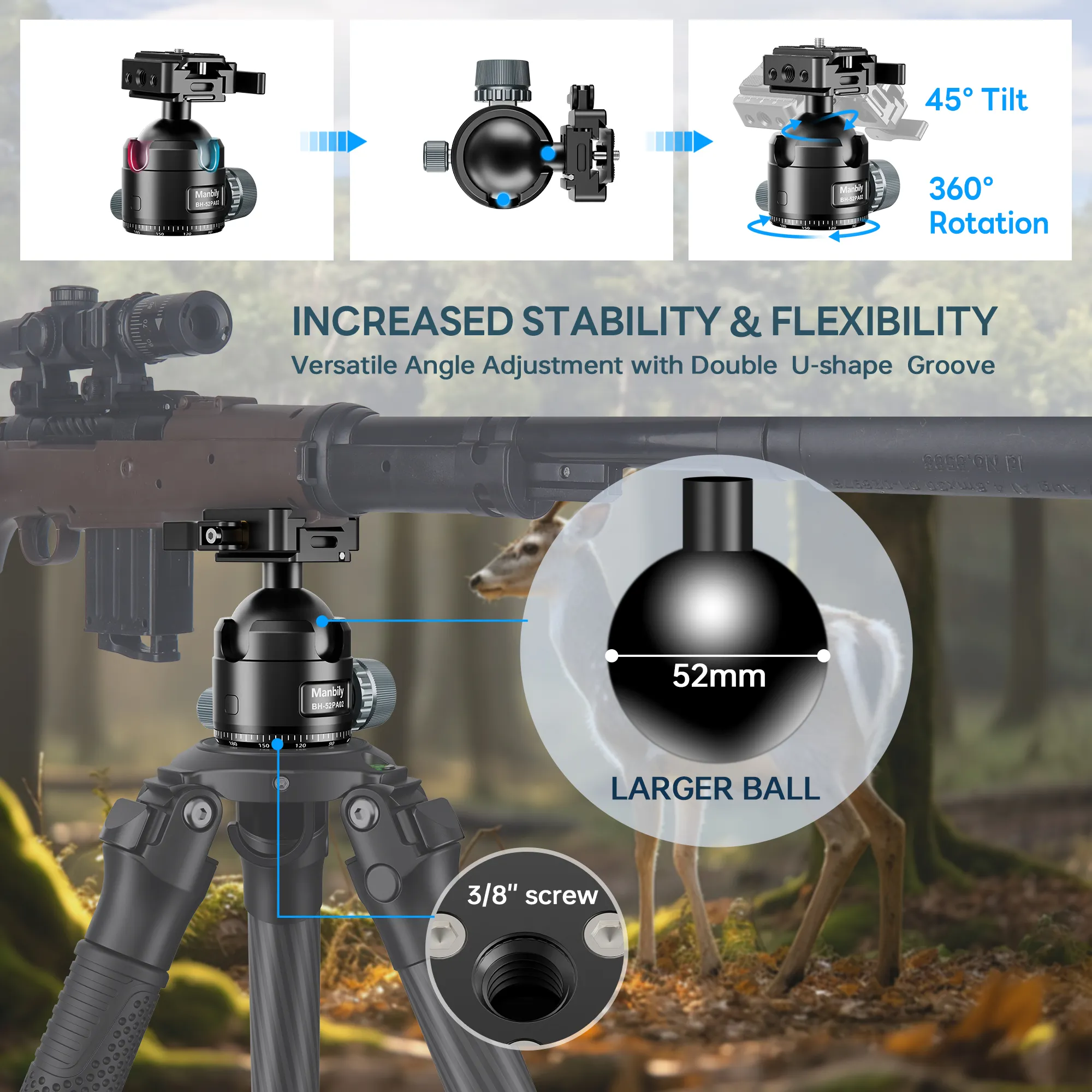

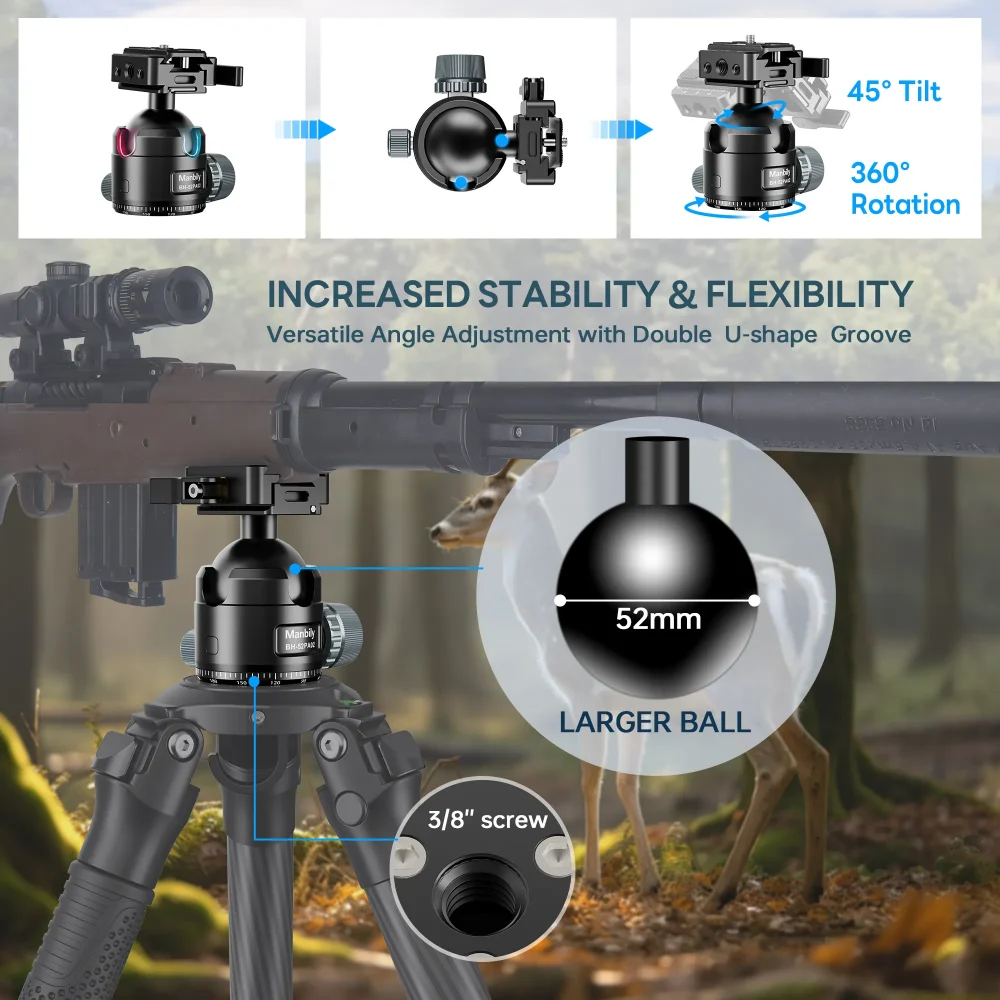

• 52mm Large Ball Head: Provides superior stability and a smooth, 360-degree panning experience with 45-degree tilt capabilities.

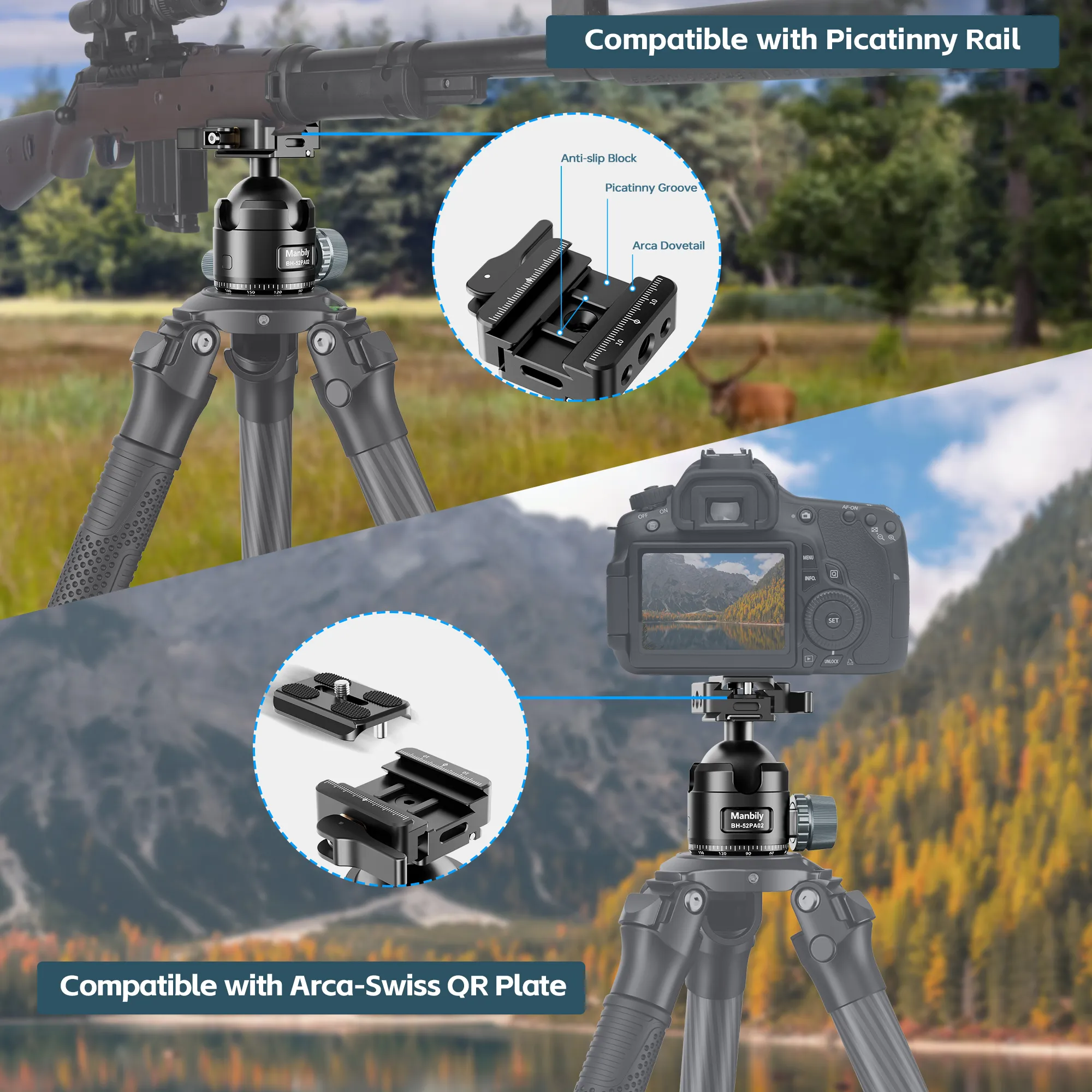

• Dual-System Adapter: The top clamp features a Picatinny and Arca-Swiss hybrid design, allowing for seamless, tool-free transition between hunting rifles (Picatinny) and camera gear (Arca-Swiss).
• High Load Capacity: Engineered for heavy equipment, supporting up to 55 lbs (25 kg).
• Low-Profile Design: The ball head sits closer to the tripod platform, lowering the center of gravity to enhance stability.
• Construction: CNC-machined from thick aluminum with a matte black anodized finish for durability and corrosion resistance.
• Dual U-Slots: Features two vertical notches, allowing for 90-degree vertical adjustments.
• Ergonomic Knobs: Large metal locking knobs allow for easy adjustment, even while wearing gloves.
• Mounting: Equipped with a standard 3/8″ thread base (includes a 1/4″ adapter) for mounting on most tripods.

COMPATIBLE WITH the following Manbily Tripods (click to access):

• Manbily MA-284-GL Aluminium Tripod
• Manbily WZ-2836 Inverted Carbon Fibre Tripod
• Manbily MT-364 Carbon Fibre Tripod

Please see the COMPATIBILITY tab for all Manbily compatible Tripods, Mounts and Heads
